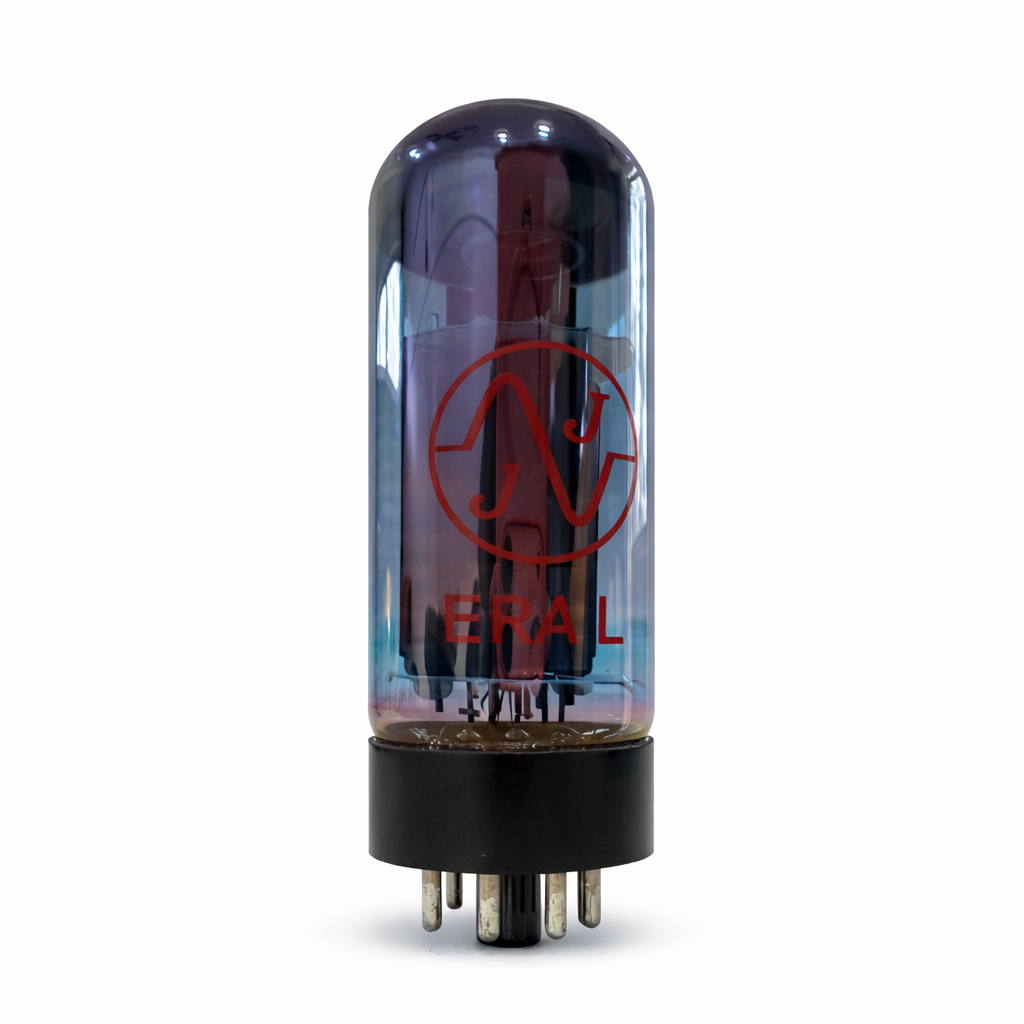

The output tube now installed in the Inspire SET amplifier is a modern production JJ EL34L, distinguished visually by its cobalt-tinted glass envelope and electrically by its extended plate dissipation and reinforced internal structure. It belongs to a lineage that begins not in radio infrastructure or laboratory instrumentation, but in the mature industrial culture of postwar high-fidelity, when amplification had become less a matter of audibility than of command.
The EL34 was introduced in Europe in the early 1950s as a true power pentode, designed to deliver substantial output with high efficiency and moderate drive requirements. Unlike beam tetrodes such as the 6L6 family, the EL34 employed a suppressor grid, granting it high transconductance and a harmonic profile that would soon become associated with musical density and sustained authority (Langford-Smith 559–562).
In classical power-amplifier theory, the output stage occupies a unique position. It is here that voltage becomes motion, where electrical structure becomes acoustic force. As Terman observes, “the output stage determines not only the maximum power delivered but the damping, distortion spectrum, and dynamic control exerted upon the load” (517). Whatever interpretive decisions were preserved upstream now acquire physical consequence.
The EL34 was engineered precisely for this transformation.
With a plate dissipation rating of 25 watts and a transconductance exceeding that of most contemporaneous power pentodes, it offered designers a rare combination of scale and responsiveness. In push-pull service it became a cornerstone of British and European hi-fi. In single-ended service, it acquired a different vocation: immediacy.
The JJ EL34L represents a contemporary extension of that lineage. The “L” variant increases plate dissipation and structural robustness, permitting higher idle currents and improved thermal stability. The blue glass, while aesthetically striking, serves a minor functional role in reducing stray electron emission and internal fluorescence. It is not coloration in the sonic sense. It is visual declaration.
Installed in the Inspire SET, the EL34L establishes the amplifier’s gravitational center.
Compared with smaller output devices, scale increases immediately. Dynamic gradients steepen. Harmonic weight thickens not by exaggeration but by consolidation. Instruments do not simply grow louder. They acquire mass.
On Charles Mingus’ Ah Um, the opening of “Better Git It in Your Soul” reveals this authority at once. The ensemble enters not as layered texture but as assembled force. Brass attacks carry a density that feels less projected than placed. The bass occupies a deeper vertical register, its fundamental no longer merely audible but structurally anchoring the image.
This effect arises not from coloration but from control.
As Langford-Smith notes, power pentodes operating in single-ended service generate a characteristic harmonic spectrum dominated by second and third harmonics, with higher orders rapidly attenuated (560). The audible result is not distortion in the pejorative sense but reinforcement: overtones that align with musical structure rather than fragment it.
Yet the EL34’s authority is not merely harmonic. It is dynamic.
In Terman’s discussion of power transfer and load control, he emphasizes that “the interaction between output impedance and loudspeaker impedance governs the amplifier’s capacity to regulate motion, particularly at low frequencies” (516). The EL34L, with its relatively low plate resistance for a pentode and high current capability, exerts a damping influence unusual for a single-ended design. Bass notes do not bloom unchecked. They settle.
Listening through this tube, one becomes aware that scale is not volume and weight is not thickness. Instead, there is a sense of placement. Images lock more firmly into the soundstage. Dynamic contrasts sharpen without glare. Musical gestures acquire consequence.
This is the domain of what Eisenberg describes as “the conversion of signal into event,” the moment when recorded abstraction becomes bodily experience (74). The output tube is where that conversion is finalized. It is here that interpretation becomes force.
The cultural position of the EL34 deepens this significance.
Unlike the 280 or the 6DJ8, the EL34 belongs squarely to the era of domestic hi-fi. It was not built for broadcasting, nor for measurement. It was built for listening. It emerged alongside stereo LPs, full-range loudspeakers, and the institutionalization of fidelity as a domestic ideal. It is, in a precise sense, the first power tube designed with musical reproduction as its primary vocation.
And yet the JJ EL34L is not a historical replica. It is a contemporary artifact, manufactured in Slovakia with modern metallurgy, revised plate geometry, and contemporary quality control. It carries the design grammar of the 1950s into the twenty-first century, extending a lineage rather than reenacting it.
In Kopytoff’s terms, it is an object with a divided biography (67). Its type belongs to postwar hi-fi culture. Its specimen belongs to modern boutique production. Its function belongs to a listening practice that itself inherits both.
This continuity is not decorative. It is operative.
In Sterne’s account, listening practices are reorganized but never replaced; each technological regime preserves earlier habits within new apparatus (23). The EL34 embodies this reorganization. It carries forward a mid-century conception of power and presence into a system that now reproduces digital files, high-resolution transfers, and archival recordings.
Listening through it, one becomes aware that authority in sound is not spectacle but governance. The tube does not announce itself through brightness or drama. It governs motion, proportion, and consequence.
If the rectifier governs time, and the small-signal tube governs sense, the output tube governs reality. It is here that electrical intention becomes acoustic fact. And in that fact, one hears not merely reproduction but command.
References
- Eisenberg, Evan. The Recording Angel: Music, Records, and Culture from Aristotle to Zappa. New Haven: Yale University Press, 1987.
- Kopytoff, Igor. “The Cultural Biography of Things.” In The Social Life of Things, edited by Arjun Appadurai. Cambridge: Cambridge University Press, 1986.
- Langford-Smith, F. (ed.). Radiotron Designer’s Handbook, 4th ed. Sydney: Wireless Press, 1953.
- RCA. Receiving Tube Manual, RC-14. Harrison, NJ: RCA, 1940.
- Sterne, Jonathan. The Audible Past: Cultural Origins of Sound Reproduction. Durham: Duke University Press, 2003.
- Terman, Frederick E. Radio Engineering. New York: McGraw-Hill, 1937.
